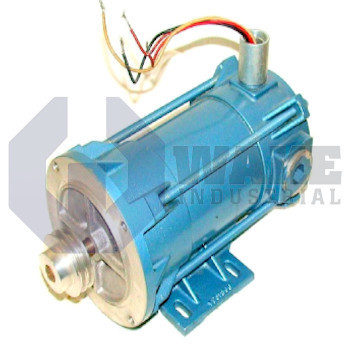

The BA3614-4648-9-56BC is manufactured by Kollmorgen as part of the BA and BAF Low Voltage Motor Series. It features an HP of 43834and a voltage of 12V. It holds a continuous current of 21.1 A and a torque constant of 0.51 lb-in. Made to undergo a resistance of 0.07 ohms and hold an inductance of 0.27 mH.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

BA3614-4648-9-56BC

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Call for Expedited Shipping and Product Condition Options
The BA3614-4648-9-56BC is manufactured by Kollmorgen as part of the BA and BAF Low Voltage Motor Series. It features an HP of 43834and a voltage of 12V. It holds a continuous current of 21.1 A and a torque constant of 0.51 lb-in. Made to undergo a resistance of 0.07 ohms and hold an inductance of 0.27 mH.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a BA3614-4648-9-56BC to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Many innovators rank Kollmorgen as one of the best ‘motion systems manufacturing’ partners.  Their product portfolio includes stepper motors, servo motors, multi-axis motion controllers and amplifiers. Kollmorgen are leaders in industries such as medical imaging, material forming, Aerospace and robotics.

Permanent magnet DC motors manufactured by Kollmorgen are grouped under their BA series. These DC motors are known for their high power, reliability, and quality. The BA3614-4648-9-56BC belongs to the BA product family. This motor has patented anti-cogging magnets. These magnets enable this motor to operate at slow speeds without any irregularities. It has a dedicated metric or NEMA mounting holes and class H insulation. The BA3614-4648-9-56BC has rugged fused commutator and long-lasting brush springs. This motor is also explosion-proof. The explosion-proof construction ensures that no other component is damaged in case the motor malfunctions. The BA3614-4648-9-56BC is also washdown duty. This ensures that no damage to the motor is done due to condensation or entrained water droplets through its shaft. The washdown duty also allows this motor to operate safely in location that are exposed to water sprays.

The BA3614-4648-9-56BC has polyester impregnated armatures. This armature configuration enables mechanical and electrical integrity. This motor also has a dedicated conduit box to terminate large wiring compartment. The BA3614-4648-9-56BC is UL recognized and is designed to be used efficiently with low voltage supplies. This motor has a maximum of 1750 RPM, and a continuous current of 21.1 A. This motor has an inertia of 2.9 lb-in and an inductance of 0.27 mH. This motor weighs 15 lbs and has a length of 8.13 inches. The BA3614-4648-9-56BC is backed by one-year warranty from Wake Industrial.

BA3614-4648-9-56BC Documents

  • BA36144648956-BC
  • BA36144648956BC
  • BA-36144648956-BC

BA3614-4648-9-56BC Technical Specifications

Continuous Current: 21.1 A
Continuous Torque : 9.0 ln-in
HP: 1/4
Inductance : 0.27 mH
Resistance: 0.07 ohms
Torque Constant : 0.51 lb-in
Voltage: 12V
