MKD112D-027-KG3-AN

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911283166
The MKD112D-027-KG3-AN Servo Motor Series is manufactured by Rexroth Indramat Bosch. This motor has a Windings Code of 27 and a Multiturn Motor Encoder. This motor also is A Plain Driven Shaft and is Equipped with a Holding Brake.

MKD112D-027-KG3-AN

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911283166
The MKD112D-027-KG3-AN Servo Motor Series is manufactured by Rexroth Indramat Bosch. This motor has a Windings Code of 27 and a Multiturn Motor Encoder. This motor also is A Plain Driven Shaft and is Equipped with a Holding Brake.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a MKD112D-027-KG3-AN to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

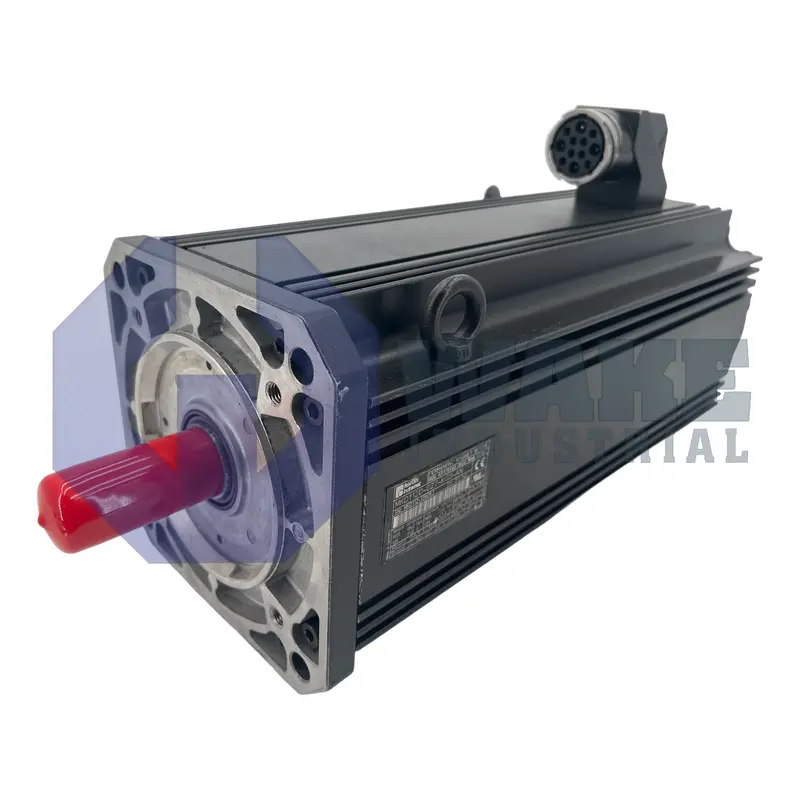

The MKD112D-027-KG3-AN is an MKD AC Motor manufactured Bosch Rexroth Company. It features a black prime housing coat that is resistant to weathering, yellowing, dyes, and diluted acids. It has a maximum speed of 3000rpm, weighs 56.0kg, theoretical maximum torque of 187Nm, and thermal time constant of 40min. the electrical characteristics include a continuous torque and current at standstill of 72.0Nm and 47.4A respectively. The peak current is 142.2A and the winding inductance is 5.65mH. Its rated data include a rated speed of 2000min-1, torque of 59.2Nm, current of 27.6A, and a rated power of 15.2kW.

To guarantee optimum performance, the MKD112D-027-KG3-AN ought to be put into operation under the following ambient conditions. Operating and storage temperature of 0 to 40 degrees and -20 to 80 degrees respectively. The installation elevation is capped at 1000 meters above sea level while the protection category is IP 65. The motor can be equipped with GTS or GTP planetary gearings. The gearings have high operational reliability, high-performance data, and are easy to attach to a machine. This further improves the performance of the motor and machine. Worm gears 058 are compatible with the MKD112D-027-KG3-AN and are characterized with similar benefits.

The motor can be mounted in three orientations. IM B5 (normal orientation), IM V1 (drive side downwards), and IM V3 (drive side upwards). The housing is coated with a prime coat that resistant to acids, diluted lyes, chalking, coloring, and weather. During transportation, ensure you provide shock-absorbing supports to reduce the number of impacts and vibrations. Store the MKD112D-027-KG3-AN in a dry, dust-free environment. Let the motor assume a horizontal orientation. You can get this Rexroth motor from Wake Industrial with a one-year warranty.

MKD112D-027-KG3-AN Documents

  • MKD 112D-027-KG3-AN
  • MKD-112D-027-KG3-AN
  • MKD112D-O27-KG3-AN
  • MKD112D027KG3AN
  • MKD112D 027 KG3 AN
  • mkd112d-027-kg3-an

MKD112D-027-KG3-AN Technical Specifications

Driven Shaft: A Plain
Equipped: Holding Brake
Motor Encoder: Multiturn
Synchronous Servo Motor: MKD
Windings Code: 27
Motor Frame Size: 112
Motor Length: 48.0 Nm
Windings Code: 27
Motor Feedback: Resolver Feedback with integrated multiturn absolute encoder
Driven Shaft: shaft (with shaft sealing ring)
Holding Brake: with holding brake 70Nm
Output Direction of Power Connection: Output connector in directon of side A
Other Design: none
