MKD071B-061-GP1-KN
- MPN: R911261682
- Stock: Call for Quote
COVID-19 Update: Wake Industrial is open and available to support your automation needs.
This company was fantastic to work with! Very patient with us to make sure we ...
~ Carla Morgan Excellent Kentucky, USANext day air shipping and we are up and running!! Thanks so much!
~ Jeanne Wolter Excellent Colorado, USAWe asked for a fast turn around and Wake was up to the task!
~ Darrell Chapman Excellent Indiana, USAI contacted Gregg one morning in desperate need of two servos to get our Filler ...
~ Paul Kovacs Excellent California, USAThe service that I received was outstanding!
~ Gary Douglas Excellent Ontario, CanadaUnderstood our situation, and worked to help us get it solved. Very responsive, and stepped ...
~ Brian Tomlin Excellent Arizona, USA

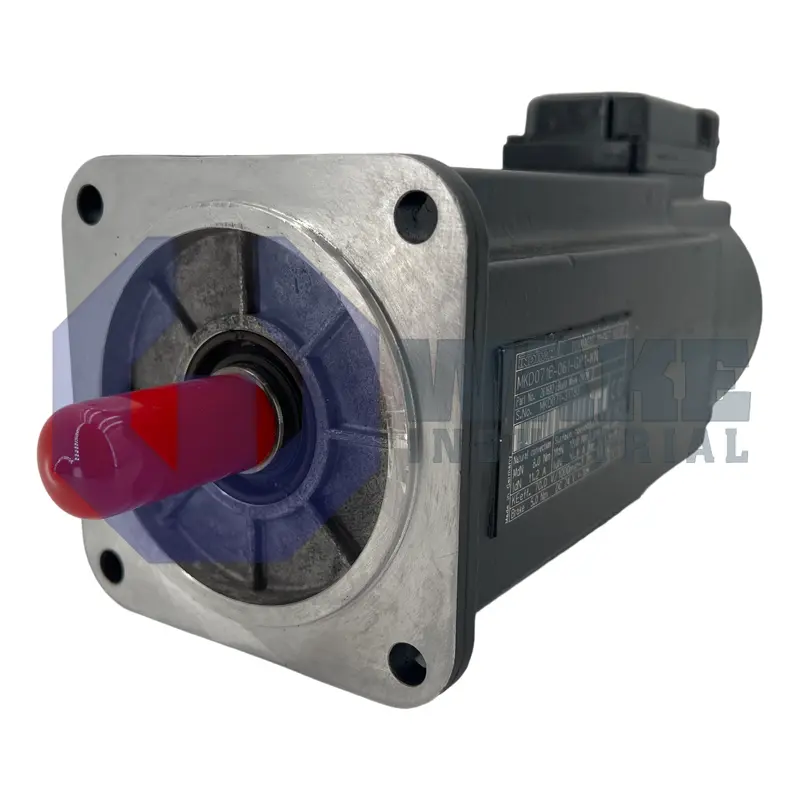

The Indramat MKD071B-061-GP1-KN is a Digital AC Synchronous Brushless Servo Motor that is designed for highly dynamic servo applications where precise positioning is required. The latest technology MKD motors by Rexroth, Indramat combines compact dimensions with high dynamics and best energy efficiency. This MKD series synchronous servo motors are capable of assuring high contouring accuracies at high feed rates. This synchronous AC motors have a high torque density and relentless performance in dynamic applications. They are widely used in robotics, CNC machines, automated manufacturing systems, machine tools, material handling, printing and packaging machinery, tracking systems, etc.
The MKD071B-061-GP1-KN Digital AC Synchronous motor offers continuous stall torque ratings from 8 to 12 Nm with a rated speed range from 2000 to 4000 min-1. The motor is totally enclosed in design and features natural cooling by air. The Resolver Feedback of the motor features a wide variety of position and velocity feedback applications. The device is outfitted with standard housing with a holding brake of 5 Nm. The housing of this MKD motor is painted with a black prime coating that has resistance to yellowing, weathering, and diluted acids. The specific size of the motor is 071 and the winding code is 061.
The MKD071B-061-GP1-KN AC motor can carry the loads typically occurring in case of punches, presses, or press inlets. The protection class provided by the motor is IP65. The class ensures the device’s protection against penetration of dust and shock as well as jet water. The permissible ambient temperature for this motor is 0 to 45oC and the maximum allowable setup height is 1000 m above the sea level.
Driven Shaft: | With a Key |
Equipped: | Holding Brake |
Motor Encoder: | Resolver |
Synchronous Servo Motor: | MKD |
Windings Code: | 61 |
Motor Frame Size: | 71 |
Motor Length: | 8.0 Nm |
Windings Code: | 61 |
Motor Feedback: | Resolver Feedback |
Driven Shaft: | shaft with key per DIN 6885-1 (with shaft sealing ring) |
Holding Brake: | with holding brake 22 Nm |
Output Direction of Power Connection: | connection box |
Other Design: | none |
