Product Description:

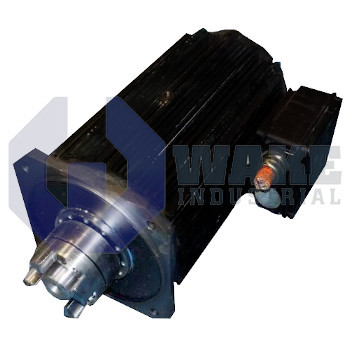

The MAF160B-0200-FQ-M0-FG0-05-R1 is an asynchronous housing motor produced by Bosch Rexroth Indramat within the MAF IndraDyn Asynchronous Motors series. Designed for closed-loop drive systems, the unit supplies regulated torque to conveyors, spindles, and similar industrial axes that demand constant speed under varying loads. Its construction follows DIN EN 60034-14, allowing direct integration into standardized machine frames while the liquid-cooled stator keeps overall dimensions compact for cabinet or machine-bed installation.

Process heat is extracted through liquid cooling, with coolant entering and leaving via a 1/2-inch connection thread formed directly in the end shield. This threaded interface aligns with common hydraulic fittings, simplifying hose routing and maintenance. Mechanical fixation is provided by flange mounting, so the motor face bolts directly to the machine structure and keeps axial runout low. The housing is sealed to IP65, excluding dust and water jets and permitting installation close to cutting fluids or washdown areas. Dynamic output is limited by a rated speed of 2000 rpm, a value that matches medium-frequency inverters and keeps rotor surface speeds within safe limits for the 160 frame size.

Thermal endurance is supported by an insulation system classified as Class F, allowing winding temperatures up to 155 °C before degradation. Operation is specified for ambient conditions from 0 to 40 °C, so full current may be drawn in typical factory environments without derating. Compliance with vibration level A keeps bearing loads low and extends service intervals when the motor is mounted on stiff frames. A plain shaft with an integral sealing ring prevents coolant and lubricants from escaping while excluding contaminants from the bearing cavity. The motor is delivered without a holding brake, and its frame designation 160 B together with winding code 0200 identify the electromagnetic layout used by the drive controller.
