Product Description

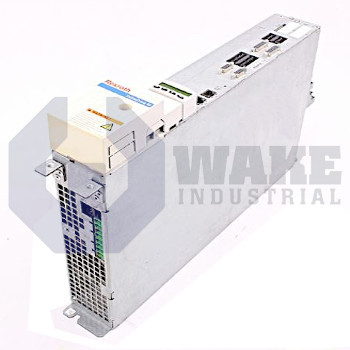

The HMS01.1N-W0036 is one of the several HMS series of power sections with a modular design. This power section from Bosch Rexroth has a line code of 1 and a design code of 1. The product does not include a power supply. The module is operated along with the MKS series of motors from the same manufacturer using appropriate power cables. It can be fitted with a HAS05 adapter for DC bus connection and supports a HAS02 shield connection. The device has a Degree of contamination of 2, in conformation with EN50178 specifications. The unit can be delivered to any address across the world.

The power section uses internal air circulation through an integrated blower as its cooling mode. The module has a maximum current rating of 36A. The product is incorporated as one of the key parts of the manufacturer’s drive controllers and it supports the insertion of a 0.4kg control section if needed. The device has an upper DC bus voltage limit of 900V +/-2.5%. It also features a continuous output current rating of 13A at 8kHz frequency. The unit can be connected to a bus module externally for establishing cross-communication with all other products that share the same bus connection.

The power section is a major part of the IndraDyn M drive controller. The product has a maximum installation height of 4,000m above sea level with derated data. Its dimensions are 440 x 50 x 262 mm (H x W x D). The device has a nominal Y-capacitance of 2 * 68nF and power dissipation of 2 x 205W. The module requires a minimum mounting clearance of 80mm at the top and 100mm at the bottom. The motor is connected to the unit from the bottom. The power section has a one-year Wake Industrial warranty.
