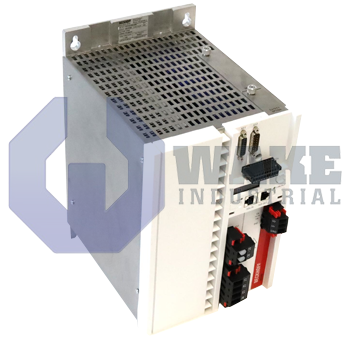

AX5140-0000-0202 is a AX51xx series 1-channel servo drive manufactured by Beckhoff. This drive measures 274 mm x 185 mm x 232 mm, and has a peak output current of 80 A and 550 W power loss.

AX5140-0000-0202

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
AX5140-0000-0202 is a AX51xx series 1-channel servo drive manufactured by Beckhoff. This drive measures 274 mm x 185 mm x 232 mm, and has a peak output current of 80 A and 550 W power loss.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a AX5140-0000-0202 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The AX5140-0000-0202 is one of the single-channel digital compact servo drives from Beckhoff’s AX51xx series. It features an EtherCAT high-performance communication system that enables ideal interfacing with PC-based control technology. The built-in integrated control technology makes the device fast and highly dynamic in terms of positioning works. The AX5140-0000-0202 offers the AX-Bridge control that enables to form a multi-axis system by connecting it with several AX500 devices. Different types and sizes of motors can also be connected with it without any additional measures. This includes all the familiar types like synchronous, linear, torque, and asynchronous motors. The device also features SERCOS™ profile for servo drives and IP20 level protection class.

The AX5140-0000-0202 servo drive is designed to work under a wide range of current rates from 3 A to 40 A with a supply voltage of 3 x 100…480 V AC ±10 %. DC-link and breaking voltage energy management ensure the durability of the servo drive. The built-in multi-feedback interface makes the drive flexible to use with all common standards. This servo drive supports analog torque/ velocity/ position, pulse & direction, stored program, streaming commands, Fieldbus, and industrial Ethernet control.

The AX5140-0000-0202 servo drive offers a broad functionality in a compact model that is ideal for OEM and multi-axis applications. The compact design also makes the drive ideal for installation in a simple control cabinet (300 mm depth). The integration of EtherCAT technology enables very short cycle time, synchronicity, and simultaneity even after connecting the drive with a large number of devices. In addition to that, the integrated STO, SS1, and TwinSAFE safety functions enable the drive protection against the inadvertent restart of the drive axis.

  • AX514O-OOOO-O2O2
  • ax5140-0000-0202
  • AX514000000202

AX5140-0000-0202 Technical Specifications

Dimensions (without connectors): 274 mm x 185 mm x 232 mm
Peak Output Current (axis): 80 A
Power Loss: 550 W
