SC453-804-05

Name: SC453-804-05
Brand: Pacific Scientific
Price: 248 USD
Availability: InStock
Rating: 4.4 (21 reviews)

Rated 4.4 (21 total ratings)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

Call for Availability

The SC453-804-05 screw is a hex socket cap screw with an M4 thread size, 0.7 mm thread pitch, stainless steel construction, and a passivated finish. Part of the SC450 Brushless Servo Controllers series by Pacific Scientific, it complies with DIN 912 standards and offers a tensile strength of 700 N/mm².

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

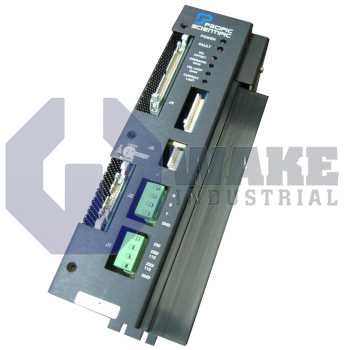

The model SC453-804-05 is a Programmable Brushless Servo Controller designed for high performance motion control. It offers precise position and speed regulation across various applications. It supports flexible integration and accurate system control operations with compact design and versatile interface options.

This Pacific Scientific SC453-804-05 servo controller supports position control up to 100,000,000 steps with a resolution of 4096 steps per revolution and 15 arcmin accuracy. The speed control is supported from 0 to 10,000 rpm with a fine resolution of 0.01 rpm. The acceleration and deceleration range spans from 3 to 1,000,000 rpm/second, resolved at 3 rpm/second. The torque is controlled from 0 % to 100 % of peak current using a potentiometer. The non volatile memory allows 10,000 write operations for storing settings. The input commands such as Jog+, Jog– and Start/Stop are sampled every 1.024 milliseconds. The mechanical home switch and position loop update also operate at a 1.024-millisecond period. The device communicates via RS-232 or RS-485 interfaces with selectable baud rates including 1200, 2400, 4800 and 9600. It uses 10 bit data format (8 data, 1 start, 1 stop) with no parity. The input voltage of the controller include 115/230 VAC (± 10 %, – 15 %), supporting single or three phase systems at 47 – 63 Hz.

The bus voltage of the SC453-804-05 servo controller is 320 VDC for 230 VAC input and 160 VDC for 115 VAC input. The efficiency of this model is over 90 % at rated continuous power. The form factor remains under 1.01 that is ideal for space constrained environments. The current loop bandwidth reaches up to 3 kHz. A velocity offset function is included and adjustable to zero. The controller’s fault output is open collector rated at 30 VDC and 25 mA sink current.

SC453-804-05 Technical Specifications

Type:	Hex Socket Cap Screw
Tensile Strength:	700 N/mm²
Standard:	DIN 912
Rohs Compliance:	Yes
Thread Size:	M4
Thread Pitch:	0.7 mm
Length:	5 mm
Material:	Stainless Steel
Finish:	Passivated
Head Type:	Socket Cap
Drive Type:	Hex
Hardness:	Min. 21 HRC

Frequently Asked Questions about SC453-804-05

Q: Does the SC453-804-05 controller support fast torque adjustments during operation?

A: Yes, the SC453-804-05 controller uses a potentiometer to regulate torque from 0 to 100 percent of peak current. This ensures precise torque control in dynamic load conditions.

Q: Can Pacific Scientific SC453-804-05 maintain accuracy in high-resolution positioning tasks?

A: Yes, this model supports up to 100 million position steps with 4096 steps per revolution. It delivers 15 arcmin accuracy for demanding motion control applications.

Q: Is the SC453-804-05 servo controller suitable for high-speed velocity operations?

A: Yes, it handles speeds from 0 to 10000 rpm with a resolution of 0.01 rpm. The acceleration range is from 3 to 1 million rpm per second.

Q: Does the SC453-804-05 ensure stable performance in space limited systems?

A: Yes, its compact form factor stays under 1.01 making it ideal for tight installations. It also maintains efficiency above 90 percent at rated continuous power.

Q: How responsive is the SC453-804-05 in real-time motion control feedback?

A: The Jog commands and mechanical home switch are sampled every 1.024 milliseconds. Position loop updates also occur within the same 1.024 millisecond interval.

Internal Product Review

‘‘The Pacific Scientific SC453-804-05 servo controller offers 0–100% torque control via potentiometer and a current loop bandwidth of up to 3 kHz. It supports 160/320 VDC bus voltage. The efficiency of the model exceeds 90% at rated power. It delivers compact design with a 1.01 form factor and 10-bit serial communication.’’
