Home Pacific Scientific Permanent Magnet DC Motors BAF3644-5081-56BC

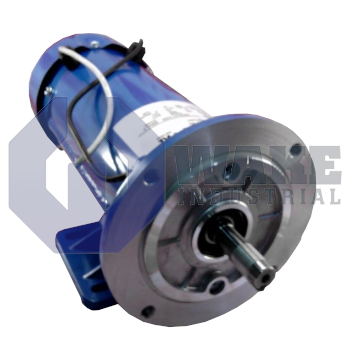

BAF3644-5081-56BC

  • Rated 4.6 (30 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
Permanent Magnet DC Motor Series manufactured by Pacific Scientific. This motor features a 56C NEMA Frame and a Current (Amps) of 38.4.
Request a Quote Request Repair

Wake Industrial LLC is not an authorized distributor of this product.

BAF3644-5081-56BC

  • Rated 4.6 (30 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
Permanent Magnet DC Motor Series manufactured by Pacific Scientific. This motor features a 56C NEMA Frame and a Current (Amps) of 38.4.
Request a Quote Request Repair
Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
Surplus
Cash Icon Have a BAF3644-5081-56BC to sell?
To Speak to a sales representative for pricing and lead time:
Phone
1-888-551-3082
International
1-919-443-0207
Email
sales@wakeindustrial.com

Product Description

The Pacific Scientific PMDC Motor Series offers rugged, quality construction and dependable operation. The motor uses permanent magnets in place of a wound field design thus enabling a lighter, more compact and efficient motor. This Motor has a Current (Amps) of 38.4 and a NEMA Frame of 56C. The Motor also has an Inertia (lb-in.) of 6.6, a Current (Peak/A) of Factory Assigned and Torque Constant (lb-in./A) of 1.
  • BAF3644 5081 56BC
  • BAF3644-5O81-56BC
  • BAF3644508156BC

BAF3644-5081-56BC Technical Specifications

Output power: 1 Hp
Speed: 1750 RPM
NEMA Frame: 56C
Enclosure: TEFC
Current: 38.4 Amps
Torque : 36 lb-in
Weight: 28 lbs
Torque Constant : 1 lb-in./A
Resistance: 0.05 Ohms
Inertia : 6.6 lb-in

Frequently Asked Questions about BAF3644-5081-56BC


Q: What is the benefit of low voltage motors?

A: The main benefit of low voltage motors is that you can power them with simple batteries.

Q: How can you mount the motor?

A: The motor has a removable base for secure mounting.

Q: What are current and torque ratings for the motor?

A: The continuous currnet rating is 38.4 Amps and the continuous torque rating is 36 lb-in.

Q: What does NEMA C mean?

A: A motor with NEMA C design indicates a squirrel-cage motor designed for high torque applications.

Q: How does the motor dissipate heat?

A: The motor has a Totally-Enclsosed Fan-Cooled (TEFC) housing that relies on an external fan for heat dissipation.

Internal Product Review

  • ‘‘BAF3644-5081-56BC is a motor with TEFC housing that requires external cooling.’’
