CH042B-13-3105

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}

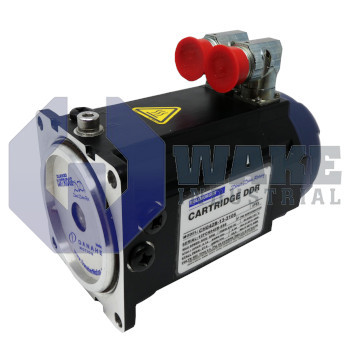

The CH042B-13-3105 is manufactured by Kollmorgen in part of the Cartridge Direct Drive Motor series. The cartridge DDr features a continuous torque of 7.19 N-m and a peak torque of 19.0 N-m. The cartridge DDR can reach a maximum speed of 2500 RPM and a volt system of 400/480 VAC.)

CH042B-13-3105

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The CH042B-13-3105 is manufactured by Kollmorgen in part of the Cartridge Direct Drive Motor series. The cartridge DDr features a continuous torque of 7.19 N-m and a peak torque of 19.0 N-m. The cartridge DDR can reach a maximum speed of 2500 RPM and a volt system of 400/480 VAC.)

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a CH042B-13-3105 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The CH042B-13-3105 is from the CH product family that features a voltage range of 400-480V, 0.425 square inch housing, mid stack length, and a high-speed winding. It comes with a standard flange mounting option, 90-degree rotatable connectors, and a solid shaft field with split ring coupling and no key. The CH042B-13-3105 has a higher bandwidth compared to mechanical transmission components. Most mechanical components have a limitation on how fast a machine can start and stop. This reduced the possible throughput of your machine. The DDR motor mitigates this limitation allowing for faster start and stops cycles.

Unlike mechanical transmission that requires inertia matching, the CH042B-13-3105 eliminates this procedure since it is connected directly to the load. This makes the inertia of the load and the motor common. You can seamlessly control the machine since it becomes more stable. Thanks to the electromagnetic design, this Kollmorgen motor provides 50% more torques compared to common servo motors in the market. The motor reduces installation time, saves space, and improves the performance of the machine. Some of the benefits of using the CH042B-13-3105 include an assembly time of five minutes, lower machine cost, reduced labor, and higher machine throughput.

The cartridge motor can be mounted in any orientation deemed appropriate for the application at hand without impacting performance. The motor has a weight of 7.26kg, rotor inertia of 11.9kg-cm, and a peak torque of 25.3Nm. The IP 64 protection category ensures that the motor is protected from extrinsic objects and liquids. The feedback option is an EnDat single turn absolute sine encoder and the solid shaft field features a split ring coupling but lacks a key.

  • CH-042B-13-3105
  • CH042B-133105

CH042B-13-3105 Technical Specifications

:
Connectors: 90 degree rotatable
Continuous Torque : 7.19 N-m
Frame Size: 108mm
Maximum Speed: 2500 RPM
Peak Torque : 19.0 N-m
Series: 400/480 VAC
