The AKM42G-ANMNEM-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

AKM42G-ANMNEM-00

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The AKM42G-ANMNEM-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a AKM42G-ANMNEM-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

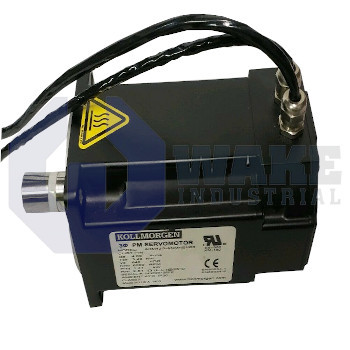

Kollmorgen Company produces the AKM42G-ANMNEM-00 synchronous servo motor. It falls under the AKM range of motors that are explicitly designed to be driven by servo amplifiers under the SERVOSTAR series. The motor features rare earth neodymium-iron-boron materials that allow the motor to be driven in a dynamic way. To bring the motor to operation, it should be an integral part of the electrical machine or apparatus.  It is designed for drives for robots, industrial textile, packaging machines and more. When combined with the digital amplifier it is ideal for positioning tasks in industrial applications.

The AKM42G-ANMNEM-00 is intended to be brought to operation under ambient conditions which include a climate category of 3K3, ambient temperature of 5 to 45 degrees, and a permissible humidity of 95% free from condensation. The flange conforms to IEC standard, accuracy according to DIN 42955, and tolerance class N. mounting the motor can be achieved through three position. Shaft end, A-side, shaft end upwards, and shaft end downwards. The shaft end, A-side is the ideal mounting orientation. When using the shaft end upwards position ensure that the bearings are free from liquids. The insulation material come up to class F and the vibration class N conforms to DIN ISO 2373.

The AKM42G-ANMNEM-00 has a flange IEC with a size of 84mm, G winding type, and a smooth shaft. The 0.5M shielded cables feature an IP 20 protection class. The mechanical data includes a standard weight of 3.39kg, a thermal time constant of 17min, and static friction torque of 0.026Nm. Experts in drive technology or electrical engineering should transport, install, and commission this Kollmorgen servomotor. During operation, it can exceed 100 degrees. Wait until the thermometer reads below 40 degree before touching it.

  • AKM-42G-ANMNEM00
  • AKM42G-ANMNEMOO

AKM42G-ANMNEM-00 Technical Specifications

Frame Size: AKM4
Frame Size:
Max BUS (VDC): 640
Max Rated N: 6000
Max Rated Power at Max BUS: 1.73 kW
Max Stall Tc: 6.0 Nm
Max Tp: 20.4 Nm
Stack Length: 2
