AKM42C-AC5NR-01

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The AKM42C-AC5NR-01 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

AKM42C-AC5NR-01

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The AKM42C-AC5NR-01 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a AKM42C-AC5NR-01 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

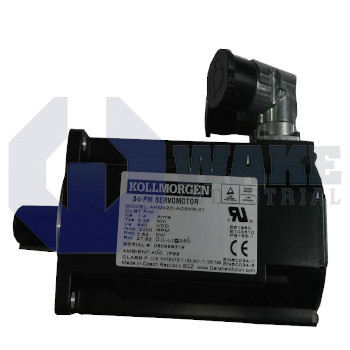

The AKM42C-AC5NR-01 is an AKM4 series synchronous servomotor from Kollmorgen. The servomotor must always be used along with a SERVOSTAR digital servoamplifier from the manufacturer and helps in evaluating the position of the resolver. There should be no axial loads as far as possible for the longevity of the motor. Care should be taken to ensure that liquids do not seep into the upper bearing when the motor is mounted with the shaft end upwards. The product is integrated with thermal contact in its windings. The servomotor is brushless because the commutation is performed electronically by the servoamplifier. The ball bearings have a life that equals or exceeds 20,000 operating hours.

The servoamplifier has a flange of size 4 that is designed according to IEC specifications. The product uses a hollow-shaft two-pole resolver for feedback. The unit has a rated speed of 1,500min-1. The device supports a permissible radial load of 450N at the shaft end when the speed is 3000min-1. It has a standard weight of 3.39kg and a 3K3 climatic category in adherence to EN 50178 specifications. The device experiences high radial forces when it is powered by toothed belts or pinions. It should be de-energized and have unhindered ventilation during the wiring and assembly process. The motor features a one-year warranty period.

The flange of the motor features a tolerance class of N. The servomotor is designed with a switching point at 155°C +/-5%. The unit is equipped with an electrically isolated PTC. The thermostat in the device does not offer protection against heavy overloading or short circuits. The device has a rotor length of 2. The wiring must be done following valid regulations and standards and the rotor must always revolve freely without any grinding noise. The C type winding servomotor can be shipped to any part of the globe through our dependable delivery team.

  • AKM-42C-AC5NR-01
  • AKM42C-AC5NR-O1

AKM42C-AC5NR-01 Technical Specifications

Frame Size: AKM4
Frame Size:
Max BUS (VDC): 640
Max Rated N: 6000
Max Rated Power at Max BUS: 1.73 kW
Max Stall Tc: 6.0 Nm
Max Tp: 20.4 Nm
Stack Length: 2
