The AKM32D-ANCN2-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 10.22 Nm. The AKM series also featured a max rated force of 7000 and max rated power of 1.19 kW.

AKM32D-ANCN2-00

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The AKM32D-ANCN2-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 10.22 Nm. The AKM series also featured a max rated force of 7000 and max rated power of 1.19 kW.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a AKM32D-ANCN2-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

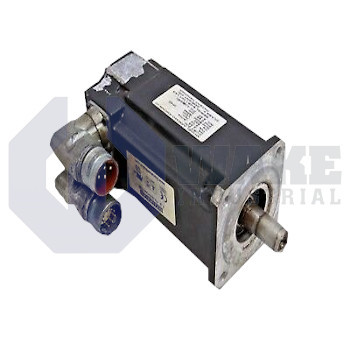

The AKM32D-ANCN2-00 is a synchronous motor from Kollmorgen that’s used for driving dynamic machine tools, transfer lines, and industrial engines. The AKM32D-ANCN2-00 has a flange sized 70mm and a 2048 PPR CamCoder fitted in place of the resolver. The CamCoder cannot be retrofitted. The Kollmorgen Motors provided with alternatives to the resolver, such as this CamCoder, output reduced rated data. The AKM32D-ANCN2-00 also has an increased motor length compared to the ones fitted with the resolver.

The motors are coated in matt black. Keep solvents like trichloroethylene away from the motor because the coat is not resistant against them. It should be used in temperatures below 40°C and 95 % relative humidity. If the ambient temperature where the motor will be used is above 40°C, seek guidance from Kollmorgen Motor’s application department. You need to put up measures to protect the motor from excess stress. This helps keep the components in good shape and also ensures the insulation clearances are intact.

The standard version AKM32D-ANCN2-00 is fitted with a smooth shaft where power is transmitted. It does not have a fitted keyway, but this can be mounted on request. You can choose to have your AKM32D-ANCN2-00 motor fitted with a holding brake. For these additional features to be added, you have to inform the manufacturer beforehand because they cannot be retrofitted. The 480V AKM32D-ANCN2-00 has a standstill torque of 2.04 M 0 [Nm] with a rated speed of 5,500 n n [min -1 ]. One important thing to note, Kollmorgen motors are not to be connected directly to the mains supply.

  • AKM-32D-ANCN2-00
  • AKM32D-ANCN2-OO

AKM32D-ANCN2-00 Technical Specifications

Frame Size: AKM3
Frame Size:
Max BUS (VDC): 640
Max Rated N: 7000
Max Rated Power at Max BUS: 1.19 kW
Max Stall Tc: 2.88 Nm
Max Tp: 10.22 Nm
Stack Length: 2
