AKM31E-ANCNEM-02
- Stock: Call for Quote
COVID-19 Update: Wake Industrial is open and available to support your automation needs.
This company was fantastic to work with! Very patient with us to make sure we ...
~ Carla Morgan Excellent Kentucky, USANext day air shipping and we are up and running!! Thanks so much!
~ Jeanne Wolter Excellent Colorado, USAWe asked for a fast turn around and Wake was up to the task!
~ Darrell Chapman Excellent Indiana, USAI contacted Gregg one morning in desperate need of two servos to get our Filler ...
~ Paul Kovacs Excellent California, USAThe service that I received was outstanding!
~ Gary Douglas Excellent Ontario, CanadaUnderstood our situation, and worked to help us get it solved. Very responsive, and stepped ...

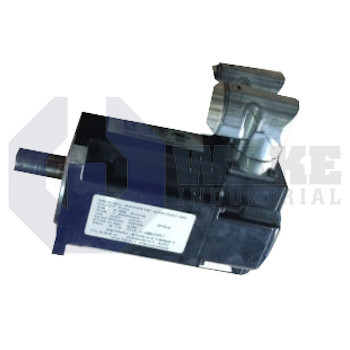

~ Brian Tomlin Excellent Arizona, USAThe AKM31E-ANCNEM-02 is a motor that is designed to drive machine tools, industrial motors, packaging, and textile machinery, as well as other equipment that need high dynamic requirements and stability. Moreover, this motor should only be driven by servo amplifiers from the SERVOSTAR series under torque or speed control. Typically, this motor is installed as a component in a machine where they can consequently play a crucial role in the operation of the electrical apparatus. Additionally, this motor should never be directly connected to the mains supply, and thermal contact incorporated into the motor windings needs always to be evaluated and observed.
Integrated into these servomotors are permanent magnets located in the rotor. It also features rare earth neodymium-iron-boron magnetic material that plays an integral role in ensuring these motors operate in an extremely dynamic manner. Furthermore, it comes with a three-phase winding that is propelled by a servo amplifier included in the stator. Nevertheless, this motor has no brushes as all communication is carried out by a servo amplifier electronically. The winding temperatures are monitored using temperature sensors located in the stator windings, and signaling is done through an electrically isolated thermistor.
The AKM31E-ANCNEM-02 also has a pre-installed resolver to act as a standard feedback element. Integrated into this motor are servo amplifiers that deliver sinusoidal currents to the motor and analyze the resolver position. The alternative feedback system cannot be retrofitted and causes a change in the motor length. Additionally, this motor can either come fitted with or without an in-built holding brake and retrofitting this brake is not possible.
Some other standard features found on the AKM31E-ANCNEM-02 include a flange, insulation material class, protective device, feedback unit, as well as shaft end.
Frame Size: | AKM3 |
Max BUS (VDC): | 640 |
Max Rated N: | 7000 |
Max Rated Power at Max BUS: | 1.19 kW |
Max Stall Tc: | 2.88 Nm |
Max Tp: | 10.22 Nm |
Stack Length: | 1 |
