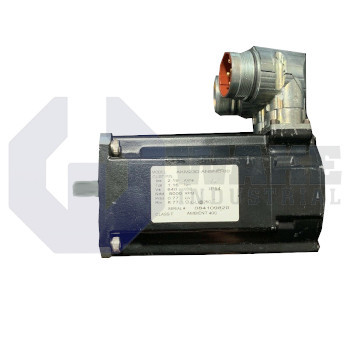

AKM23D-ANBNC-00

  • Rated 4.8 (8 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options
The AKM23D-ANBNC-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 4.82 Nm. The AKM series also featured a max rated force of 8000 and max rated power of .54 kW.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock! AKM23D-ANBNC-00

AKM23D-ANBNC-00

  • Rated 4.8 (8 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options
The AKM23D-ANBNC-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 4.82 Nm. The AKM series also featured a max rated force of 8000 and max rated power of .54 kW.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a AKM23D-ANBNC-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Kollmorgen is a technology company known for its state-of-the-art solutions for a wide range of industries. Kollmorgen’s servomotors stand out among the rest because of high-precision accuracy, durability and long-lasting performance. The AKM series by Kollmorgen delivers industry-leading power density and best in-class performance. The AKM synchronous motors are available in 7 frame sizes while 28 frame/stack combinations are there for the taking. AKM brushless motors feature a top speed of 8000 RPM and there are five variations (75Vdc, 115/230/400/480 VAC) with respect to winding. Kollmorgen offers a wide variety of feedback devices, seals, mounting and other customizations to meet client’s needs. The AKM servo motors should be driven with Kollmorgen servo drives for improved performance.

The AKM23D-ANBNC-00 belongs to the AKM2 category. The brushless motor weighs 1.38 kg and has a flange size of 58 mm. The rotor length 3 offers more space for the neodymium-iron boron rare-earth magnet to support highly dynamic operation. The flange mounting complies with the IEC standard. The servo motor has a smooth shaft without keyway and consists of a Smart Feedback Device as a feedback option.

In terms of performance, the AKM23D-ANBNC-00 brushless servo can reach the top speed of 8000 RPM if supplied with 400V or 480V mains voltage. At these voltages the rated torque of the motor is 0.93 Nm and its rated power is 0.77 kW. The standstill torque of the AKM23D-ANBNC-00 servo motor is 1.16 Nm. The winding has F class material that ensures motor stability up to 155 degree Celsius. Featuring low harmonic distortion coupled with exceptionally low-cogging, the servo motor ensures smooth performance.

  • AKM-23D-ANBNC-00
  • AKM23D-ANBNC-OO

AKM23D-ANBNC-00 Technical Specifications

Frame Size: AKM2
Thermal time constant: 10mins
Maximum mains voltage : 480V
Standstill Torque: 1.16Nm
Stanstill Current: 2.19A
Rated speed at mains voltage of 480V: 8000rpm
Peak current: 8.8A
Peak Torque: 3.84Nm
Torque constant: 0.52Nm/A
Weight: 1.38kg

Frequently Asked Questions about AKM23D-ANBNC-00


Q: What is the recommneded way to install the AKM23D-ANBNC-00 motor?

A: The basic installation style for the AKM23D-ANBNC-00 is the IM B5 installation style. This installation should be done by industrial professionals according to the instructions in the documentation of the motor.

Q: Is the AKM23D-ANBNC-00 a permanent magnet motor?

A: Yes. The permanent magnet in the AKM23D-ANBNC-00 is made from rare earth neodymium-iron boron material. This unique magnetic material makes it possible for the motor to be driven in an highly dynamic fashion.

Q: What type of protection does the varnish on the AKM23D-ANBNC-00 provide?

A: The black housing varnish on the AKM23D-ANBNC-00 protects the motor against mildly corrosive liquid subatances such as dilute acids and dilute alkali. However this varnish is not resistant against solvents such as nitor-thinners or trichlorethylene.

Q: What industrial apllications is the AKM23D-ANBNC-00 designed for?

A: The AKM23D-ANBNC-00 is prescribed for industrial machines with a high requirements for dynamics. Example of suitable machines include robots, machine tools, textile, and packaging machinery.

Q: Can the AKM23D-ANBNC-00 be used with third-party drives?

A: The AKM23D-ANBNC-00 is designed to be operated exclusively by servo aplifiers of the SERVOSTAR series. The use of third party drives is not allowed.
