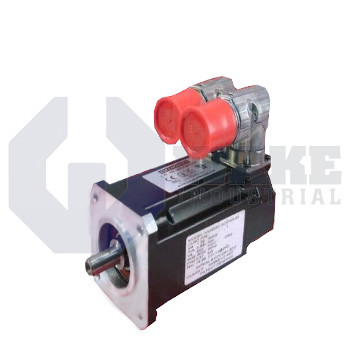

AKM22C-ACFNR-00

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Stock: Call for Quote
The AKM22C-ACFNR-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 4.82 Nm. The AKM series also featured a max rated force of 8000 and max rated power of .54 kW.

AKM22C-ACFNR-00

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Stock: Call for Quote
The AKM22C-ACFNR-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 4.82 Nm. The AKM series also featured a max rated force of 8000 and max rated power of .54 kW.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a AKM22C-ACFNR-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The AKM22C-ACFNR-00is an innovative product manufactured by Kollmorgen. It is one of the finest products from the AKM series of servomotors. It operates with a standstill torque of 0.84Nm and a standstill current of 1.39A. The actual rotating field and the rotor field of this particular servomotor is able to work together successfully as a result of the high value of its standstill torque. The standstill current is the major feature that controls the maximum speed required to drive AKM22C-ACFNR-00.

The AKM22C-ACFNR-00 has many applications to processing and manufacturing industry. It is mostly used to drive huge textile machineries and industrial robots because of the high value of its rated speed and power of 1000 rpm and 0.09KW respectively at 115V energy supply. The AKM22C-ACFNR-00 has a weight of 1.1kg and a 17 round cables with 0.5m diameter each. Its feedback sensor is constantly controlled by the encoder connections (servomechanism). It has a winding resistance of 19.4Ω and a maximum allowable voltage supply of 480VAC. The high value of its winding resistance is as a result of the long length of copper wire in its design. The value of its winding inductance is 35.5mH.

The AKM22C-ACFNR-00 has a torque is 0.61Nm/A and an r.m.s current of 1A. The force needed to rotate the motors is determined by the value of its torque. High quality materials were used to package AKM22C-ACFNR-00 in order to ensure that its internal and external parts are prevented from damages. It should be noted that the holding brake of this servomotor should be tested on a regular basis at a power rating of 24V, so as to maintain its efficiency.

  • AKM-22C-ACFNR-00
  • AKM22C-ACFNR-OO

AKM22C-ACFNR-00 Technical Specifications

Frame Size: AKM2
Max BUS (VDC): 640
Max Rated N: 8000
Max Rated Power at Max BUS: .54 kW
Max Stall Tc: 1.4 Nm
Max Tp: 4.82 Nm
Stack Length: 2
