MAD160C-0200-SA-S2-AQ0-05-N1

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911324429

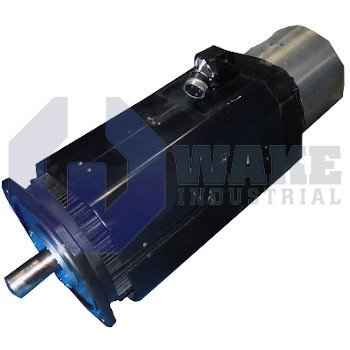

MAD160C-0200-SA-S2-AQ0-05-N1 Spindle Motor manufactured by Rexroth, Indramat, Bosch. This motor has a cooling mode with an Axail Fan, Blowing and a Singleturn Absolute, 2048 increments encoder. It also has a mounting style of Flange and a Standard bearing.

MAD160C-0200-SA-S2-AQ0-05-N1

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911324429
MAD160C-0200-SA-S2-AQ0-05-N1 Spindle Motor manufactured by Rexroth, Indramat, Bosch. This motor has a cooling mode with an Axail Fan, Blowing and a Singleturn Absolute, 2048 increments encoder. It also has a mounting style of Flange and a Standard bearing.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a MAD160C-0200-SA-S2-AQ0-05-N1 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The MAD160C-0200-SA-S2-AQ0-05-N1 is a motor produced by Bosch Rexroth. It has a frame length of the C-class and a size of 160. It has been manufactured to be used as main spindle and servo drive motor. The motor has assembly holes that support both feet mounting and flange mounting. In other words, the MAD160C-0200-SA-S2-AQ0-05-N1 could be mounted onto the machine either by foot or flange.

 You should not operate the motor with control devices produced by other manufacturers. Strictly make use of control devices manufactured by Bosch Rexroth. Additionally, only use connection cables made for the IndraDrive series manufactured by Rexroth. Ensure you do not connect or disconnect connectors from the connector terminals while there is active power. An explosion could emanate from sparks created by attaching or detaching power to the motor. These motors are designed to be used in explosive environments. The connector terminals are located on the back of the motor in the terminal box. These terminals should be tightly screwed down.

Note that the terminal box is attached to the motor from the factory according to the outlet direction specifications made by the user. In other words, the particular type code of the motor determines the cable's outlet direction. However, at the site where the motor is to be installed, the power cable's outlet direction can be modified. The modification can be done to fit a unique power connection situation. This could be done by turning the terminal box. In the event of turning the terminal box, ensure you check if the seal between the terminal box and the motor housing are placed or inserted properly. This would help curb explosion danger as a missing or improper insertion of the seal could damage the protection class of the motor and cause an explosion.

MAD160C-0200-SA-S2-AQ0-05-N1 Documents

  • MAD160C0200SAS2AQ005N1
  • mad160c-0200-sa-s2-aq0-05-n1
  • MAD160C 0200 SA S2 AQ0 05 N1

MAD160C-0200-SA-S2-AQ0-05-N1 Technical Specifications

Bearing: Standard
Cooling Mode: Axail Fan, Blowing
Encoder: Singleturn Absolute, 2048 increments
Mounting Style: Flange
