MAD130D-0100-SA-C0-HP0-05-A1

  • Rated 4.6 (10 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911337910
  • Stock: In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options

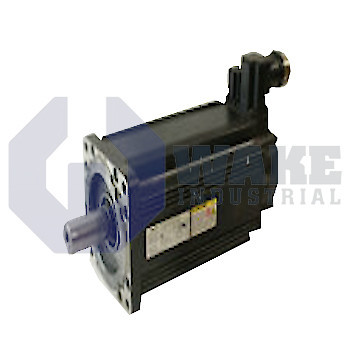

MAD130D-0100-SA-C0-HP0-05-A1 Spindle Motor manufactured by Rexroth, Indramat, Bosch. This motor has a cooling mode with an Axail Fan, Blowing and a Singleturn Absolute, 2048 increments encoder. It also has a mounting style of Flange and a Standard bearing.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

MAD130D-0100-SA-C0-HP0-05-A1

  • Rated 4.6 (10 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911337910
  • Stock: In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options
MAD130D-0100-SA-C0-HP0-05-A1 Spindle Motor manufactured by Rexroth, Indramat, Bosch. This motor has a cooling mode with an Axail Fan, Blowing and a Singleturn Absolute, 2048 increments encoder. It also has a mounting style of Flange and a Standard bearing.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a MAD130D-0100-SA-C0-HP0-05-A1 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The Bosch Rexroth MAD130D-0100-SA-C0-HP0-05-A1 is a servo motor with a rated speed of 1000 revolutions per minute and a key speed of 500 revolutions per minute. It has a power and torque rating of 17.80 kilowatts and 170.0 N-m. At a temperature of 20 degrees Celsius, the motor has a torque constant of 4.72 N-m per Ampere. The motor has a maximum power, torque, and current of 36.49 kilowatts, 417.8 N-m, and 93.4 Amps. The motor’s moment of inertia of the rotor is rated at 0.1640000 Kilograms per meter (squared) and it has a 155 thermal class rating.

For optimal performance, the MAD130D-0100-SA-C0-HP0-05-A1 should be operated in an industrial environment with an ambient temperature ranging from a minimum of 0.0 degrees Celsius to a maximum of +40.0 degrees Celsius. The motor has a cycle duration (S6-44 percent) of 10 minutes, a thermal time constant of 30 minutes, and a discharge capacity of the component of 27.3 nF. This motor weighs 165 Kilograms. It supports a power wire cross-section of 10.0 millimeters (squared) and has three pole pairs. The motor features a terminal box turntable where line terminals are placed on the B side and has an incremental encoder that supports 2048 increments.

The MAD130D-0100-SA-C0-HP0-05-A1 belongs to the Bosch Rexroth family of motors. Motors in this family are designed to accommodate a wide range of industrial applications, have a high degree of protection (dust tight and protected against water projected from a jet), and have a design that is easy to maintain. Their high power density allows them be interfaced with main spindle and servo applications.

MAD130D-0100-SA-C0-HP0-05-A1 Documents

  • MAD130D0100SAC0HP005A1
  • mad130d-0100-sa-c0-hp0-05-a1
  • MAD130D 0100 SA C0 HP0 05 A1

MAD130D-0100-SA-C0-HP0-05-A1 Technical Specifications

Bearing: Standard
Cooling Mode: Axail Fan, Blowing
Encoder: Singleturn Absolute, 2048 increments
Mounting Style: Flange
