The TVS3 109-0745-3A02-05 is a Power Supply Unit manufactured by Rexroth Indramat Bosch. This power supply features an input voltage of 220 VAC, 3-phase and an output voltage of 300 VDC . The TVS3 109-0745-3A02-05 also holds a power rating of 40 HP.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

TVS3 109-0745-3A02-05

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Call for Expedited Shipping and Product Condition Options
The TVS3 109-0745-3A02-05 is a Power Supply Unit manufactured by Rexroth Indramat Bosch. This power supply features an input voltage of 220 VAC, 3-phase and an output voltage of 300 VDC . The TVS3 109-0745-3A02-05 also holds a power rating of 40 HP.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a TVS3 109-0745-3A02-05 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

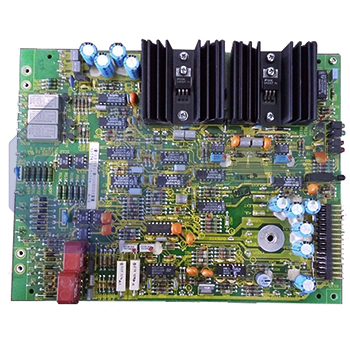

The TVS3 109-0745-3A02-05 is an electrical board unit, which helps in the operation of the KDV power supplies. It is manufactured by Bosch Rexroth Indramat. The TVS3 109-0745-3A02-05 electrical board unit has a power rating that has additional components that utilize input power configuration to meet the demands of different applications. The electrical board unit makes it possible for the KDV power supply to go into generator mode feature, while still functioning adequately.

The TVS3 109-0745-3A02-05 electrical board enables the power supply to monitor the drive system due to the presence of the extensive monitoring functions. These functions enable communication of the drive modules through the signal voltage bus and are of considerable significance to the readiness of the drive system. The power of the drive can only be switched on when the contact is closed. The electrical board unit has a simplified fusing which can only overload when the protection of the power supply line is desirable. The commercial power protection switches or the slow-blow fuses are compatible and can be used.

The TVS3 109-0745-3A02-05 electrical board unit enables the KDV power supplies to respond to power failure and can enable programming through the insertion of an external bridge circuit, which ensures that the control unit is signaled by a potential-free contact. The electrical board unit has a ground fault monitoring of the attached drives. It enables the power supply to come to a brake standstill and ensures that the components are protected against any possible damage. They are applicable for use with KDV power supply to protect home electronics and distribution systems, reducing downtime and damage caused to the equipment. This electrical board unit has a 12 month warranty.

  • TVS3 109 0745 3A02 05
  • TVS310907453A0205
  • TVS3 109-0745-3A02-05

TVS3 109-0745-3A02-05 Technical Specifications

Input Voltage: 220 VAC, 3-phase
Output Voltage: 300 VDC
Power Rating: 40 HP
