Product Description

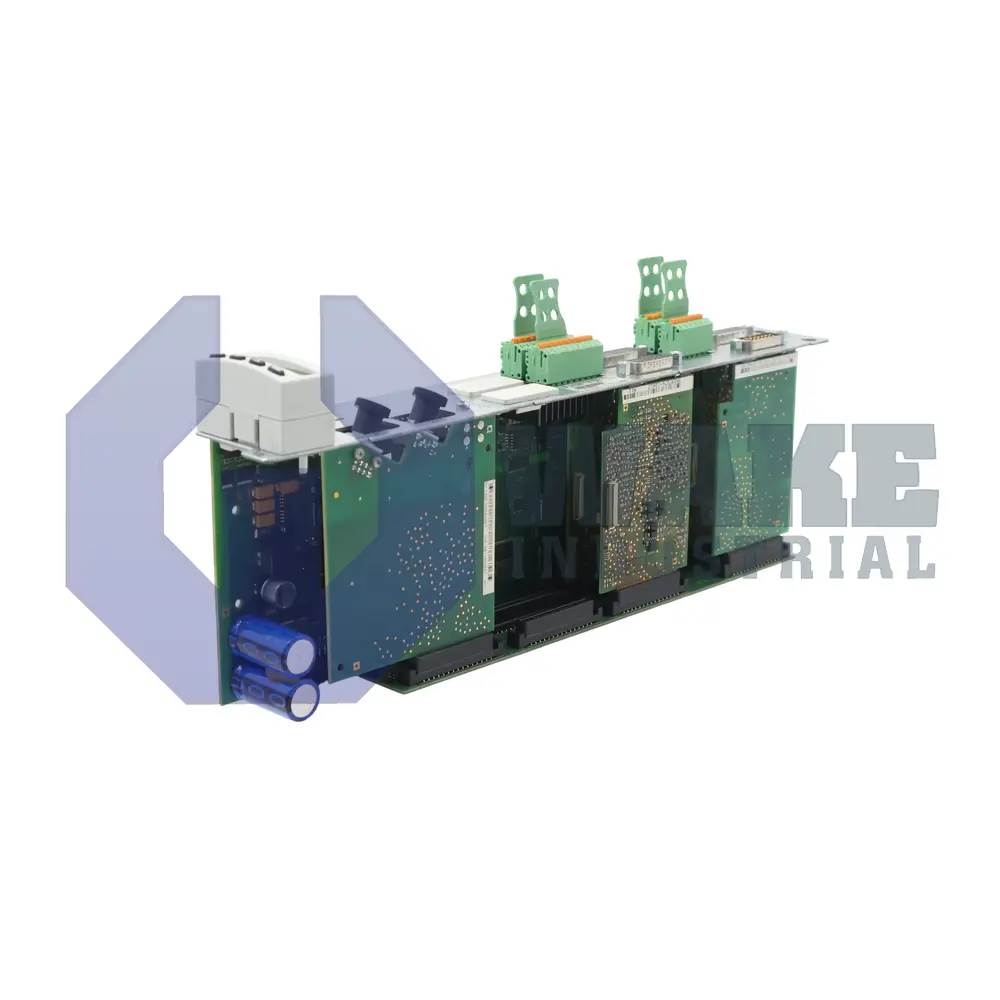

The CDB01.1C-SE-EN1-EN1-EN2-MEM-NN-S-NN-FW is a control section. It is developed by Bosch for its line of IndraDrive drive controllers. The device has a modular architecture. The hardware and firmware are selectable and allow adaptation to customer requirements. Bosch supplies multiple firmware with different features sets that are optimized for particular applications. For this reason the firmware is ordered as a separate subposition. The firmware installed on the CDB01.1C-SE-EN1-EN1-EN2-MEM-NN-S-NN-FW is identified by the firmware type plate. The control section includes a basic unit with a number of slots for plug in modules. The number of slots vary with the type of control section. The CDB01.1C-SE-EN1-EN1-EN2-MEM-NN-S-NN-FW has five slots out of which four come with pre-installed modules and one slot – for a safety module - is vacant. Two encoder HSF / RSF modules are installed on the CDB01.1C-SE-EN1-EN1-EN2-MEM-NN-S-NN-FW.

Additionally one encoder emulation module and one encoder EnDat 2.1 module are also installed on the CDB01.1C-SE-EN1-EN1-EN2-MEM-NN-S-NN-FW. It is designed for vertical mounting and measures 322.6 x 103 x 49.5 millimeters. One RS-232 interface is provided on the CDB01.1C-SE-EN1-EN1-EN2-MEM-NN-S-NN-FW for serial communication with computers and terminals. The current control cycle time on the CDB01.1C-SE-EN1-EN1-EN2-MEM-NN-S-NN-FW can be set to 125 microseconds. The velocity control cycle time can be set to 250 microsecond or 500 microseconds. The position control cycle time can be set to 500 microseconds or 1000 microseconds. The SERCOS cycle time can be set to 1000 microseconds. The switching frequencies supported by the CDB01.1C-SE-EN1-EN1-EN2-MEM-NN-S-NN-FW include 2 kilohertz, 4 kilohertz and 8 kilohertz. The control section supports SERCOS master communication. It is designed for 0 to 40 degrees Celsius ambient temperature. Only qualified and trained personnel should handle and install the device. This product can be shipped globally with a one year warranty period from Wake Industrial.
