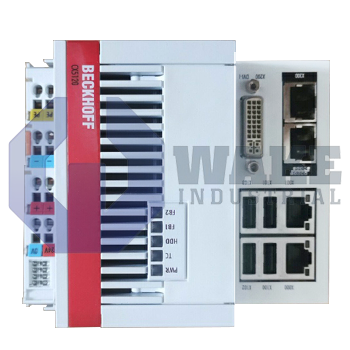

CX5120-0121 is a CX5120 series Embedded PC manufactured by Beckhoff. This PC's dimensions (W x H x D) are 124 mm x 100 mm x 92 mm and it weighs 860 g. It features an Intel Atom® E3815, 1.46 GHz processor and 2 GB DDR3 RAM storage.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

CX5120-0121

  • Rated 4.6 (24 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: Available
  • Call for Expedited Shipping and Product Condition Options
CX5120-0121 is a CX5120 series Embedded PC manufactured by Beckhoff. This PC's dimensions (W x H x D) are 124 mm x 100 mm x 92 mm and it weighs 860 g. It features an Intel Atom® E3815, 1.46 GHz processor and 2 GB DDR3 RAM storage.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a CX5120-0121 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Beckhoff is seen as a major player in the area of automation technology. With its PC-based automation technology, the company is running successful operations in over 75 countries around the world. Beckhoff’s wide range of leading-edge technologies includes TwinCAT automation software, Bus Terminals, and Light Bus systems among others. The company’s products are mainly employed in CNC machines, machine construction and plant engineering applications. Today, Beckhoff has the distinction of producing affordable and durable technologies that are forward-looking and futuristic.

The CX5120-0121 is an embedded PC system that uses the Intel Atom® E3815, 1.46 GHz processor and consumes a maximum power of 11 W (18 W with a UPS). The IPC has an elegant design and does not require a fan for heat dissipation. The system uses a 24 DC power supply and includes  several interfaces including 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I and 4 x USB 2.0 and 1 x optional interface.

The CX5120-0121 can use additional master/slave Fieldbus connections (PROFIBUS, CANopen, DeviceNet, etc.) and communication interfaces (RS232, RS422/RS485) as well as all other signal types supported by EtherCAT can be directly connected as EtherCAT Terminals. The system automatically recognizes the I/O type that is plugged-in. The dimensions of this PC are 124 mm x 100 mm x 92 mm (W x H x D). This model can operate in harsh environmental conditions because of its robust construction. The operating temperature range is -25 ᵒC to 60 ᵒC. For the main memory,  2 GB DDR3 RAM storage is provided. Flash memory is also supported with a slot for CFast card and microSD card. For modern motion control requirements, the CX5120-0121 definitely proves to be a great investment on the part of customers!

  • CX51200121
  • cx5120-0121
  • CX512O-O121

CX5120-0121 Technical Specifications

Dimensions (W x H x D) : 124 mm x 100 mm x 92 mm
Operating System: Microsoft Windows Embedded Standard 7 P (32-Bit)
Mounting Style: DIN Rail
Protection Class: IP 20
Operating Temperature Range ( °C): 0 to 60
Ventilation Openings: Top and Bottom
Weight (g): 975 (Approx)
MicroSD Card Slot: Yes
Number of USB 2.0 Interfaces: 4
Power Supply Terminal Location: Right Side

Frequently Asked Questions about CX5120-0121


Q: Can the CX5120-0121 be operated in potentially explosive atmospheres?

A: Yes, the CX5120-0121 can be operated in selected potentially explosive atmospheres. It can be used in Zone 2 and Zone 22 atmospheres.

Q: Does the CX5120-0121 require a Cfast card?

A: Yes, the CX5120-0121 requires a CFast card. The CFast card must have a minimum capacity of 8GB.

Q: Does the CX5120-0121 feature protection against water?

A: No, the CX5120-0121 has no protection against water. It should also not be used in wet and dusty environments.

Q: What is the clearance distance of the CX5120-0121?

A: The CX5120-0121 must have a clearance distance of at least 30 mm. This distance must be maintained above and below the embedded PC.

Q: What is the installation position of the CX5120-0121?

A: The CX5120-0121 must be installed horizontally on the mounting rail. It cannot be installed in any other position.

Internal Product Review

  • ‘‘The CX5120-0121 is easy to install and renders reliable operation. It records analog and digital signals from sensors with a high degree of accuracy.’’
